- After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
- Plate Type:
Heat Press machine
- Color & Page:
Label Printer, Pres on fabric, T shirt, sportswear garment
Heat Press Machine
- Applicable Industries:
Garment Shops, Manufacturing Plant, Printing Shops
- Place of Origin:
- Brand Name:
DBX heat press machine
- Model Number:
DBX-1700A heat press machine
- Automatic Grade:
380V or 220V
- Heat press machine Heating:
- Heat press machine Input voltage:
- Heat press machine Temperature Range:
- Heat press machine Printing Area:
- Heat press machine Packing size:
167*90*135cm and 216*90*135cm
- Work table size approx:
3500 x 1850 MM
- Heat press machine Control panel:
- Heat press machine Noise level:
< 30 dBA
- Heat press machine Weight:
- Supply Ability:
- 2000 Set/Sets per Month heat press machine
- Packaging Details
- heat press machine: Wooden case
Welcome to visit Guangzhou Elephant Digital Technology Co.,Ltd.
Newest cheap ce approved for clothes roller heat transfer press machine
Guangzhou Elephant Digital Technology Co.,Ltd. is a Chinese factory producing KOREAN/J-TECK/KIIAN sublimation ink, heat transfer paper, heat press machine for residential and commercial customers globally. We also provide sublimation printing solution, customized design service and catalogues producing (OEM) service.

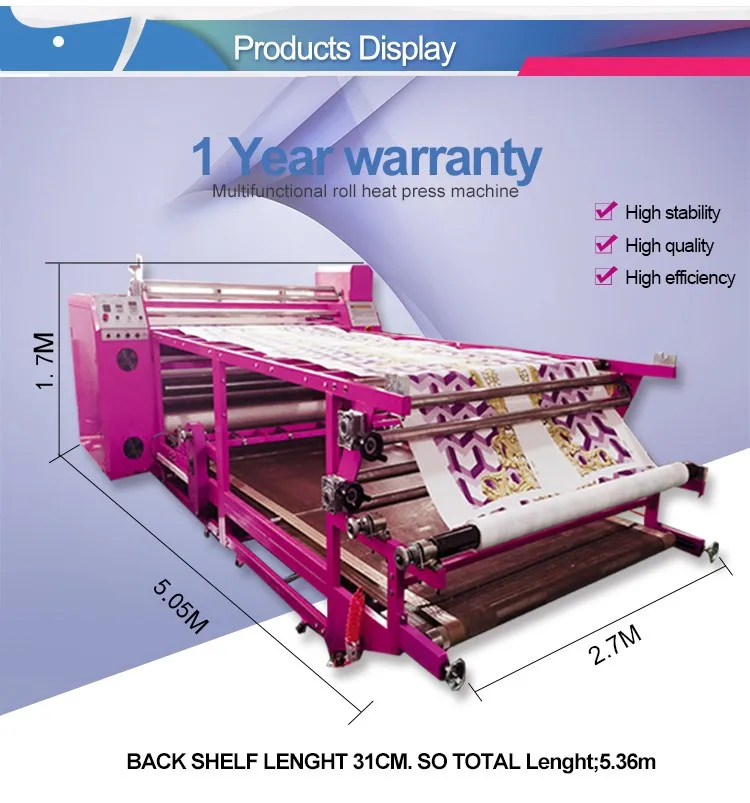

Rotary Heat Press 100% Full Oil Drum DBX-1700B is now available.
There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.
- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air
- Daily Power On/off
|Heating Media||Oil, 100% full|
|Voltage||3 phase, 240V/380V|
|Number of heating elements||21 or 24|
|Diameter of Drum||420mm (Available in 600mm/800mm)|
|Transfer Speed||Transfer paper :2m/min-offset paper :3m /min|
|Max Temp.||260 degree|
|Process Path||Deeding in through top drum|
|Function of Roll-to-roll||yes|
|Function of piece-by-piece||yes|
|Number of feeding rollers||3|
|Number of collecting Rollers||3|
|Work table||Yes,no glass|
|Transfer Pressure Bar||Without including|
|Working table size||1200x3500mm||1900x3500mm||2200x3500mm||3200x3000mm|
Its suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel fabrics, blankets, towels, mouse pads, scarves and other products in the piece,especially the roll fabrics need to continuous print.
Quality Control on Finished Machine:
All heat press machines are strictly tested under the following procedures before shipping out.
1) Turn on the heat press machine, let it heating up to 220 degree Celsius;
2) Use black transfer paper test print fabrics.
1) One-year warranty on entire press & parts.
2) Free lifetime technical support on all heat presses.
Now is supply MUTOH sublimation printer,KOREAN/J-TECK/KIIAN sublimation ink, Heat Transfer Paper, Heat Press Machine and so on.
* Sublimation paper(non sticky or sticky with custom size and weight)
* Dark and light heat transfer paper(Solving the problem for cotton printing)
* Heat transfer vinyl/film(PVC, PU, Glitter, Flock, Reflective, Glow in dark, metallic, hologram etc)
* Sublimation ink(China INKTOP sulimation ink, Korea inktec sublimation ink, Italy JTeck sublimation ink, kiian ink)
* Heat press machine(roll to roll kinbd, flatbed kind,)
* Eco solvent printer, UV Leather printer, DTG printer.
* Textile sublimation printing services etc.
Why choose us?
* One of biggest sublimation printing solution in Guangzhou of China Professional production cost!
* KOREAN/J-TECK/KIIAN sublimation ink, Heat Transfer Paper, Heat Press Machine and so on.
* Founded in 2004,with more than 10 years experiences in sublimation printing solution. Agent wanted!
* Make customer OEM designs. Help you easily sell!
* Office and factory in Guangzhou. Good logistics service!
Our first paper factory was set up in 2000 in Suzhou city, Jiangsu province. And in year 2004, we set up the 2nd factory in Guangzhou, Guangdong Province. Now we are one of largest sublimation printing solution supplier in China. Factory occupies 7000 square meters and has 2 full sets of sublimation printing solution production line, around 120 professional workers.
Our factory has obtained ISO9001: 2008 certificate and China Environmental Labeling.
Who We Serve:
Our clients include agent or distributor globally, printed project or government project, public entertainment decoration etc. We also sell sublimation printing solution to final customer all over the world.
OEM welcomed: our own Factory can make the new designs and OEM according to customer requirement.
Q1:how wide is the machine?
1.2M width, 1.7M width machine; 1.9M width machine
Q2:how about the speed ?
150-200m/h / 250-300m/h
Q3:does the Press rolls the Fabric once it is printed or you have to roll it on a different Machine?
it can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more important if stretch fabric, we still advice to keep the stretch fabric in 5/6hours after finished printing then roll it , or one night ,the color will more perfect.
Q4:are you able to print on dark Fabrics? if so how dark and on what contents? can it print on stretch goods?
this press machine can press light color fabric,not dark fabric but can print on stretch fabric
Q5:how many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
Q6: do you supply Paper and ink and Parts?Prices per gallon Prices per Paper yards ?
we also offer paper and ink! We provide one-stop services!
Q7:do you have representatives in U S A ?
we have not representatives in USA,but we sale those machine all over the world!
Q8: How we keep the maintance of this roll heat transfer machine how
competitive are you with your prices compare to your competition ? how long will it take ?
we can arrange our technicist to set up the machine and teach you to maintenance and train how to use that machine! the printer and press machine delivery time is 15-20days!
Q9:does it do stretch lycre and nylon and what colors?
stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better of white color fabric!
by the way,coz the printer can print any color,and press machine can press any pattern color on white color,so do not need other color fabric to press!
Q10:Do you have any video to show how to work?
1) Please be noted that the price in our website is merely the reference price and the actual one is subject to our final confirmation!
2) Any problem, requirement and suggestion, please contact us freely, we'd be very pleased to be at your side.
Q. How can I see your PRICES?
A. To view our prices and shop with us, please contact us email ,whats’app or Trade Manager with the item(s) you like to order and then a reasonable quotation as request would be provided.
Q. Is all the items made of high quality products?
A. We provide two kinds of products and services:
1.We have our own brand,currently the sales region covers 28 countries and regions around the world. We specialize in this field for more than 10 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc.
1. Your inquiry of our Adaptor will be reply in 24 hours.
2. We will provide you with newest quotation and the specific product specifications.
3. Good quality product, quick delivery time, competitive price, strong packing
4. We have good translations, enthusiastic sales and service who can speak fluently in English
5. We offer OEM services. Can print your logo on product, can customize the packing and other things.
6. Our engineers have R&D experiences and have strong ability to do ODM projects.
7. Every Adaptor will be checked well in order to ensure the high quality.
8. Provide detailed products test report.
After Sale service
1. Updated the shipping information as soon as possible.
2. Ensure the Adaptor delivery on time.
3. Documents will be send correctly and promptly.
We are a interlock floor manufacturing company and we respect our customers and their privacy, which is why all the information we get from our customers is confidentially kept and not given to any other third party. We ask for certain information from our customers to process our orders and to help us provide them with special offers, newsletters and better Customer Service.
